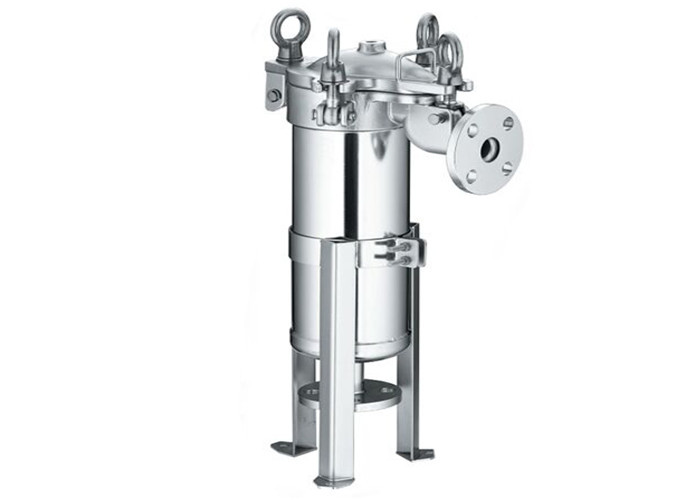

Stainless Steel Liquid Bags Filter Housing
1,Standard:GB, American Standard, German standard, Japanese
standard, customized; single bag, parallel bag, multi-bag,
cartridge;
2,Models: S, T series, PBF polypropylene containers etc.,
3 Rated flow: 6,10,23,51... 1088 tons / hour
4 Rated working pressure: 10, 20kg / cm2
5 Cylinder Material: 304 stainless steel (inside and outside blast
or polished) or customized materials;
6 High-strength support basket: by uniform pore size of
high-strength stainless steel mesh manufacture of 3.5mm;
7 Inlet and outlet: 1-14 or customized;
8 Inlet and outlet Location: Side into and side out, side into and
bottom out,top into and bottom out, top into and side out or
customized.
9 Interface Type: flange, screw thread or customized.
10 Bag model: and non-calibration;
11 Filtration precision: 1-800um (microns) relative or absolute
precision;
12 Seal ring material categories: general nitrile rubber, Teflon,
nylon, Te Fulong acid such as high temperature and high-performance
specialty materials;
13 Type of bag: pure polypropylene, polyester, wool, viscose fiber,
aromatic polyamide, Teflon, nylon and other materials;
14 Structure of bag: single screen (surface filtration structure,
pore size of 100 to 800 microns), needle felt cloth
(three-dimensional structure of fluffy deep filter, pore size of 1
to 200 microns) and melt blown nonwovens (deep bed filtration
structure, pore size of 1 to 100 microns) three, and there are a
variety of ~ 800 micron filtration precision to choose from, in
order to meet the requirements of different production processes.
Acid, high temperature and other characteristics of the bag
material can be adapted to different filtered liquid chemical
compatibility requirements.
Internal structure
1. Each bag has a separate locking device with no side leakage
opportunities.
2. Integrated design of precision without distortion.
3. Integrated precision with lifting device.
4. O-ring seal, high-strength and quick bolts.
Stainless Steel Liquid Bags Filter Housing Feature:
1. Optimal welding method, 100% no-leaks;
2. No secondary pollution;
3. High filter precision and uniform filtration aperture;
4. Low difference pressure, large flow, Long service life;
5. Easy to clean, filter element can be replace.
Stainless Steel Liquid Bags Filter Housing Application:
1.Weak corrosion material filtration: Water,oil,ammonia,hydrocarbon
2.Corrosion material filtration: Caustic soda,soda
ash,acid,Carbonic acid,Aldonic acid
3.Low temperature material in refrigeration: Liquid
methane,ammonia,oxygen and various refrigerants
4. Food & Beverage and Pharmaceutical: Bear,juice,dairy
products,syrup.
Since the bag filter using the company's products in Europe and
America standard production, matching the imported materials,
processing technology and standards of the bag, so that the user
can ensure the accuracy of the final filter. Users can filter
according to different needs, matching different shapes, different
apertures, different structures and different material of the bag,
in order to obtain the most economical and effective filtering
effect.
