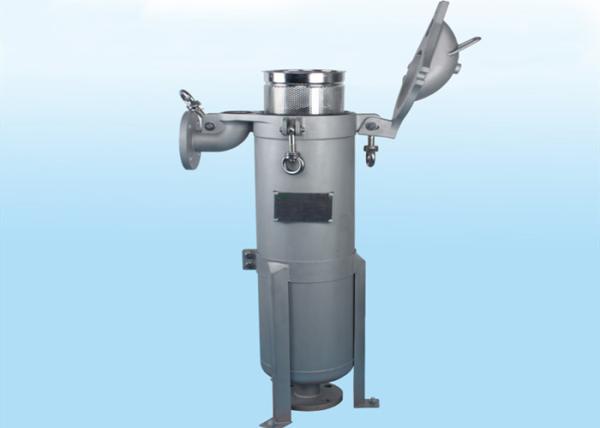

Paper Industry Stainless Steel Water Purifier Tanks For Liquid Filtration

Paper industry waste wate filtration stainless steel water purifier tanks

Paper industry waste wate filtration stainless steel water purifier tanks bag filter housing for sale

The top-in bag filter adopts advanced stainless steel precision casting, and the 360-degree full pressure seals the filter bag design. The top cover directly presses the filter bag and closely fits with the filter bag . The four symmetrical bolts lock the cover to prevent deformation and side leakage, to ensure the filtration process is almost 100% leak-free, and it can accurately ensure the filtration accuracy. Streamlined liquid flow, reduced pressure loss, professional seal design to meet the customer's demanding filtration requirements.

Product features:
(1) The precision casting top cover has high precision, less welds, and stable pressure resistance.
(2) The top cover directly seals the filter bag to ensure no leakage during the filtration process.
(3) The inside and outside surfaces of the cylinder are sandblasted, and the inner side is smooth and easy to clean.
(4) The filter is designed with reference to ASME.

Technical parameter:
Material: SUS304,SUS316L Design pressure: 12bar/120℃
Interface type: JIS/DIN/ANSI Flange(standard),Socket optional Design flow: 6-40mᶟ/h
Seal type: O type seal ring Seal material: Buna,EPDM,Viton,Silicone
Surface treatment: Sandblasting(standard) or Polishing Applicable bags: 1#,2#,4# filter bag
Installation leg adjustable available Heating jacket optional for high viscosity liquid

Filter Type	HTF-B101-050G	HFF-B102-050G
Size	Size1(7x17inch)	Size2(7x32inch)
Filter Area	0.25㎡	0.5㎡
Theoretical Flow Rate	20mᶟ	40mᶟ
Maximum Operating Pressure	10.0Pa	10.0Pa
Maximum Operating Temp.	120℃	120℃
Material of Construction	SS304/316L
Seal Ring Material	Buna, EPDM, Viton, PTFE, Viton+PTFE
Standard Inlet/Outlet	2’’ flange (standard)
Surface Treatment	Glass bead blasted (standard)
Filter Volume	13.0litres	27.0litres
Housing Weight	25kg (approx.)	50kg (approx.)
Installation Height	98cm (approx.)	181cm (approx.)
Installation Space	50cm x 50cm (approx.)	50cm x 50cm (approx.)

Product application:
Electronics, semiconductors, chemicals, pharmaceuticals, food, beverage, paint, paper industry, automobile manufacturing, inks, resins and other industrial filtration and water treatment.
