Gas Filter Housing / Single Cartridge Filter Housing With O.2 Micron PTFE Cartridge

    Buy cheap Gas Filter Housing / Single Cartridge Filter Housing With O.2 Micron PTFE Cartridge from wholesalers

    Buy cheap Gas Filter Housing / Single Cartridge Filter Housing With O.2 Micron PTFE Cartridge from wholesalers
    • Buy cheap Gas Filter Housing / Single Cartridge Filter Housing With O.2 Micron PTFE Cartridge from wholesalers

    Gas Filter Housing / Single Cartridge Filter Housing With O.2 Micron PTFE Cartridge

    Ask Lasest Price
    Brand Name : SFFILTECH
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000pcs per month
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Gas Filter Housing / Single Cartridge Filter Housing With O.2 Micron PTFE Cartridge

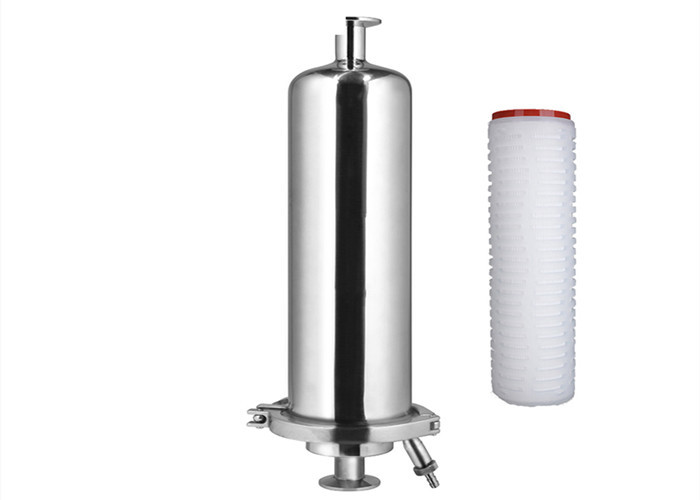

    Stainless Steel single cartridge gas Filter Housing with O.2 micron PTFE cartridge


    Product Description

    BJQ gas filter housing is made of 304 or 316L stainless steel. The connection between the cylinder cover and cylinder is flange or clamp. The device support part uses the flat foot sheet or landing leg. The overall surface uses mirror surface polishing. According to different requirements, you can select activated carbon, PP/PTFE/GF pleated type filter cartridge to use.

    Features

    1. Meet the GMP Requirements Electropolished, smooth and hygienic design by avoiding dead space.Easy management of condensate

    2. Complete Stainless Steel Structure.Made of 100% 304 or 316L stainless steel of the highest quality

    3. Easy To Install Design, Easy to Clean.Available in tri-clamp or flanged connections


    Technical data

    Designed Pressure9.6 bar(136psi) within 30mins
    Max Operating Pressure6.0 bar(87psi) within 30mins
    Max Temperature105 ℃ (design 140 ℃)
    Surface FinishElectropolished, Ra≤0.2 um

    Specification

    CartridgesBody ClosureDimensions(mm)
    NOS.Lengthd(outlet/inlet)DBH1H
    15’’Ferrule Clamp/Flange3/4 inch102108120570
    10’’1 inch690
    20’’1 inch940
    30’’1 1/4 inch1190
    310’’Flange/Stud Bolts2 inch184240180720
    20’’2.5 inch980
    510’’3 inch219280200130
    20’’4 inch990

    Order information

    ProductMaterialCartridge NOS.Cartridge TypeLengthHow to order?
    BJQ

    304-SUS304

    316-SUS316L

    01-Single

    02-Three

    05-Five

    AA-DOE

    CN-226/FIN

    AF-220/FLAT SEAL

    BF-222/FLAT SEAL

    CF-226/FLAT SEAL

    10-10''

    20-20''

    30-30''

    40-40''

    Other-xx

    Material: SUS304

    Cartridge Nos.: single

    Cartridge type: 226/FIN

    Cartridge length:10’’

    Selection code is:BJQ30401CN10


    Gas Filter Housing / Single Cartridge Filter Housing With O.2 Micron PTFE Cartridge
