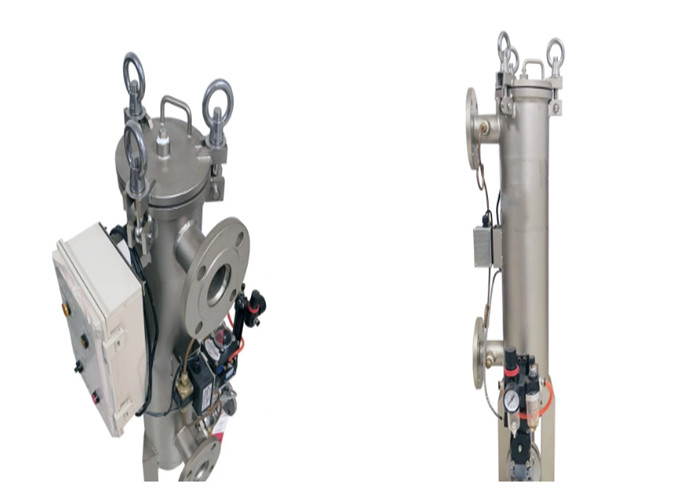

Automatic Self cleaning back wash filter housing in SS304/316

The automatic self cleaning filter Working principle

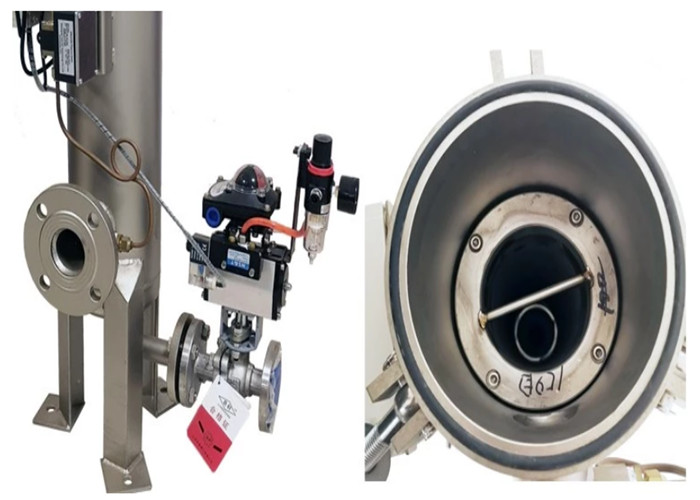

The automatic self cleaning filter is consisted of filter vessel, stainless steel filter screen, differential pressure switch, time-delay device and pneumatic drain valve. The liquid flows into vessel,filtered by the filter screen and flow out from outlet.So the impurities are intercepted in the filter screen. When the differential pressure reaches the pre-determined value, the filter automatically start the self-cleaning process and the impurities will go out from the drain valve.

Automatic Controlling

First,make the control system to automatic mode.

Second,when the pressure difference switch the reaches index value,the filter will start self-cleaning automatically and discharge.The time of cleaning and discharging are set by the control system.

Finally,when the time reaches to the index value, the filter will stop cleaning and continue the filtration process.

Manual Controlling

First,make the control system to manual mode.

Second, when you press the discharge button, the filter will start self cleaning and discharge.

Finally, loosening the discharge button, the filter will stop cleaning and continue the filtration process.

Product Design Features

1. Suitable for the high flow rate, low-viscosity fluid filtration. The max capacity of a single system is up to 3500m3/h.

2. The filter has the ability of retrieving the instable flow rate and adjusting the time of cleaning without manual operation.

3. Filter screen is easy to be cleaned and it is not consumption part.

4. When the fitler is cleaning the filter screen, the inflow can keep working at the same time.

5. The time of cleaning process is so short that it will save raw material and power.It is very environmental.

6. Compact construct design,small floor area. Easy installation and moving flexiblly.

7. The filter has less wearing parts, no consumption parts and much lower operation and maintenance cost.

8. With extensive application filed,the filter could meet different requirements of various raw water.

9. with larger filtration area and little loss of pressure, more impurities can be filtered.

10. Every parameter can be adjusted according to the actual working condition.

Shanghai Sffiltech Co.,Ltd.,based on the German technology, is the professional manufacturer and supplier of liquid filtration and separation products. Efiltech products include bag filter system, cartridge filter systems, pipe filters, self cleaning filters, auto back-flush self cleaning filter and other industrial filtration systems. They are widely used in electronics, semiconductor, chemical, pharmaceutical, food, beverages, paints, paper industry, automobile manufacturing, inks, resins, watertreatment and other industrial fields. Sffiltech provide you affordable, reliable and efficient filtration solutions and perfect service.

--Efiltech can provide various filters with international standard, such as American standard, Japanese standard, German standard etc.
--All filters can be custom made according to customer drawings.
--OEM is available Expect long term and good cooperation with all friends from all of the world.
