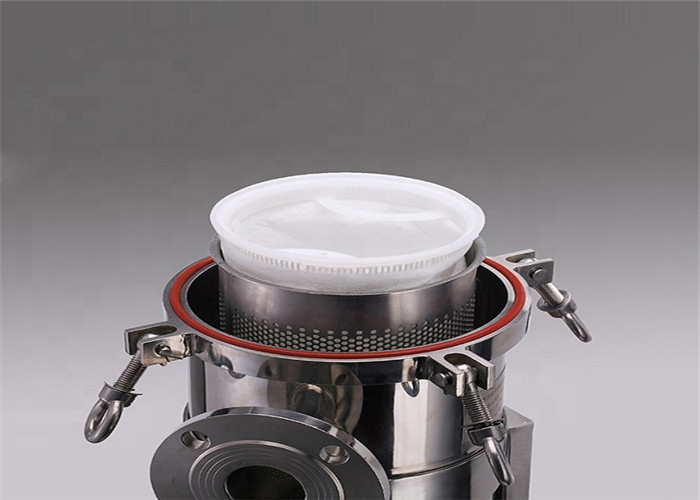

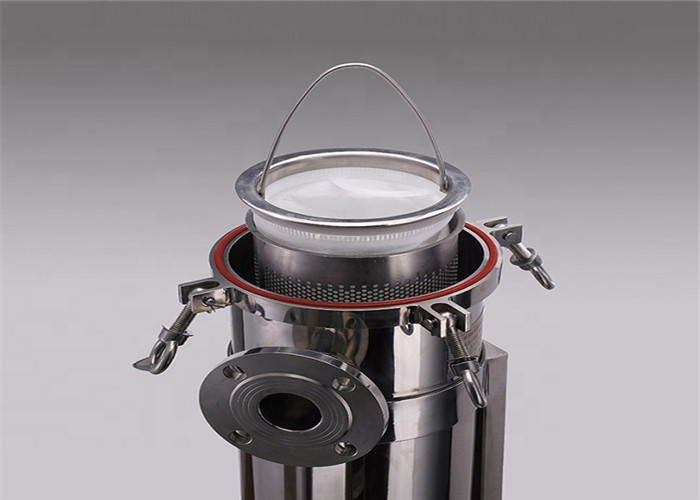

Industrial strainer basket bag filter housing with pump set
Bag filters are particularly useful for filtering large volumes or
high viscosity liquids, which are constructed of filter housing,
filter bags, internal cage to support bags, positive sealing
arrangement.
TS filter high efficiency bag filter housing are widely used in industrial wastewater filtration systems
Main advantages
01. Small probability for side-bag leakage , which effectively
guarantee the filtering quality.
02. Bag type filter can bear greater working pressure, it is of
small pressure loss,low operation cost and obvious energy saving .
03. Accuracy of filtration bag increased continuously, it could
reach 0.5 μm at most.
04. Bag type filter large handling capacity, small volume,
containing a large quantity of pollutants.
05. Based on the working principle and structure of Bag type
filtering system,which is convenient to replace the filter bag and
without cleaning,and time saving and labor saving.
06. Filtration bag could be use repeated after cleaning to save
cost.
07. bag filter application scope is broad, with flexible operation
and multiple installation .
Technical parameters
| Design pressure: 0.96MPa 30min |
| Maximum working pressure:0.60MPa |
| Surface smoothness:Ra≤0.2 |
| Design flow rate:Ra≤0.2 |
| Inlet&outlet type thread or flange |
| Type:single bag & multi bag filter housing |
Designed for bag filtration system
| Different kinds of bag support baskets to fit for |
| wide range of filter bags |
| Complete stainless steel structure | Made of 100% SUS304, SUS316L, PP |
Easy to clean
| Surface is mechanical polished or sand blasting passivation. |
| dished end to aid clean down |
Specifications for single bag filter housing
| No. | Size | Diameter | Length | inlet&outlet | Filter bag | Flow rate |
| Code | (mm) | (mm) | size | (m/h) |
| 1 | BJD1 | 220 | 550 | 2" thread, clamp, flange | 1 | 20 |
| 2 | BJD2 | 220 | 950 | 2" thread, clamp, flange | 2 | 40 |
| 3 | BJD4 | 130 | 650 | 1" thread, clamp, flange | 4 | 10 |
Specifications for multi bag filter housing
| No. | Size | Diameter | Length | inlet&outlet | Filter bag | Flow rate |
| Code | (mm) | (mm) | size | (m/h) |
| 1 | BJD2-2 | 400 | 1600 | 3" thread, clamp, flange | 2*2 | 80 |
| 2 | BJD2-3 | 500 | 1600 | 3" thread, clamp, flange | 2*3 | 120 |
| 3 | BJD2-4 | 550 | 1600 | 4" clamp, flange | 2*4 | 160 |
| 4 | BJD2-5 | 600 | 1600 | 4" clamp, flange | 2*% | 200 |
Ordering Guide
| PRODUCT | Bag Size | Bag Q'ty | Inlet/Outlet | Connection | Surface | Materials |
| BJD | 1 -#1 bag | 01 - Single | A- side in and side out | K-coupling | S- sand blasting | 304 |
| 2 - #2 bag | 02 - Two | B- side in and bottom out | F-bolt | T- polished | 316L |
| 3 - #3 bag | 03 - Three | C- bottom in and bottom out | S- thread | | PP |
| 4 - #4 bag | 04 - Four | D- top in and bottom out | How to order ?-example |
| 5 - #5 bag | 06 - Six | | Bag size: #1; Bag Q'ty: Single |
| 6 - #6 bag | 08 - Eight | | Inlet/outlet: side in and side out |
| 7 - #7 bag | 12 - Twelve | | | Connection: coupling |
| X - other size | | | | Surface: sand blasting |
| | | | | Material: SUS304 |
| | | | Selection code is: BJD101AKS304
|
Operating Conditions(Bag Filter):
Max.Operating Pressure: 6 bar(87psi) , 10.34bar(150psi)
Max.Operating Temperature: 120°C
Applications(bag filter housing eaton replacement):
| Processing Chemicals | Paints,Inks,Coolants |
| Oils,Edible Oils, Vegetable Oils | Pharmaceuticals |
| Sugar Syrup | Cleaning Fluids |
