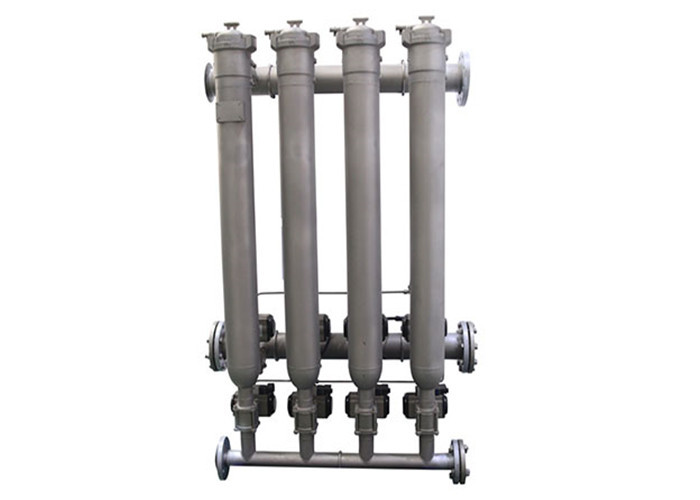

Quality MF Series Moduline Bag Filter Housing suppliers & exporter
- all products made in China
Bag filter housing system
Quick opening multiple bag type filter housing- VM series
VM series quick opening multiple bag type filter, to focus on
efficiency and safety and durability of users design, mainly used
in more impurities, filter elements need to be replaced frequently
and continuous production and fast switching filter, VM filter is a
sharp tool to improve production efficiency. Filter element
replacement is fast and reliable, effectively reducing the impact
of the production disruption caused by the replacement components,
significantly improve the production efficiency, at the same time,
greatly reduce the labor intensity of workers.
VM opening cover diagram
Filter characteristics:
1) The fastest 15 seconds to ON/OFF the filter, quickly replace the
filter element;
2) ON/OFF in a fixed position, no need to round the filter to tight
nut;
3) With safety chain design, exhaust pressure to open the filter;
4) Gravity balance auxiliary opening mechanism, the single finger
can push up to any open angle can be opened;
5) Vertical open cover, a plurality of compact can be parallel,
saving installation space and cost of piping;
6) With a special bag pressing ring fastening tools, simple
operation and labor;
7) Reduce the downtime to the shortest, promote productivity and
reduce operating costs;
8) Selection of high quality O type elastomer sealing ring,
excellent sealing performance and sealing life time;
9) The copper nut is designed, the thread is no longer with the
thread, and the rotation is more time saving and labor saving;
10) The liquid part is made of pure stainless steel, excellent
corrosion resistance and durability;
11) 8 models, respectively, three bags, four bags, five bags, six
bags, eight bags, twelve bags, seventeen bags, twenty-three bags;
12) three kinds of import and export orientation layout, convenient
design and installation.
After a period of time, the replacement steps are as follows:
Step 1: open the safety interlock device to ensure the synchronous
pressure relief.
Step two: rotate the shaft by hand, open the hoop safely
Step three: use a spring assisted balance mechanism to open the
upper cover.
Step four: the use of pressure ring fastening tools, rotary open
pressure ring
Step five: remove the bag, change into the new bag
Step six: close the top cover
Step seven: rotate the shaft by hand.
Step eight: close the safety interlock device, enter the status of
continuing work
