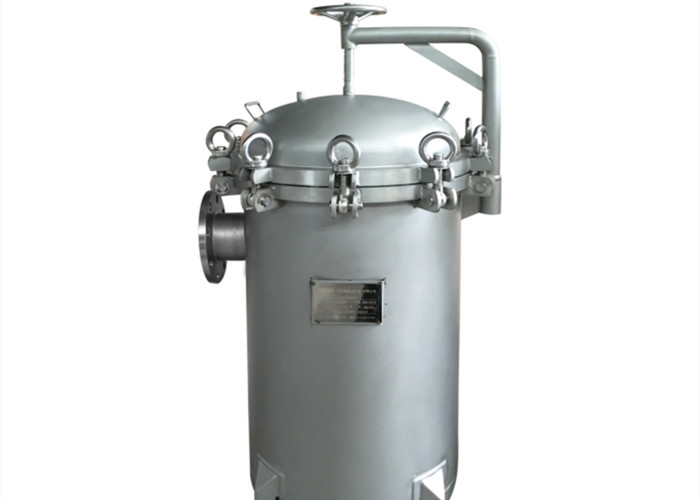

Top-in Bottom-out Electrolytic Polishing Single Bag Filter Housing
Cartridge Filter (Filter for short), with filter cartridges as
filter elements, is capable of liquid precision filtration. It can
remove tiny impurities and bacterium. filter has the advantages of
high filtration rating and high dirt holding capacity.It has
various high performance filter cartridges developed by LIVIC, and
can meet various conventional and special filtering requirements.
The following 4 sub-series are available:
K Series filter, is an economical filter, it has tri-clamp lid and is easy to
operate, suitable for conventional filtration of low flowrate and
low pressure.
V Series filter, is a type of high-end filter, competent to the most demanding
applications. It’s reliable and durable with flange sealing lid and
has quick open design and assistant davit.
M Series filter, with MaxSEP series cartridge, especially designed for
applications of high flowrate, high filtration rating and high dirt
holding capacity. It has both horizontal and vertical design, high
flowrate, compact structure and easy cartridge replacement. Other
design features are the same as the V series.
P Series filter, with PowerSEP series cartridge, especially designed for
applications of high flowrate, high filtration rating and high dirt
holding capacity. Its design features are the same as the M series.
Applicable Typical Industries and Liquids
| Applicable industries | Fine chemicals, water treatment systems, plup and
paper, auto industry, petro-chemical, machining, coatings,
electronics, etc. |
| Applicable liquids | Wide applicability, all liquids contained micro particles |
| Filtration function | Remove particles in various sizes, purify liquids, protect
key equipment |
| Filtration type | microfiltration, filter with disposable filter media, which
requires periodic manual replacement |
Main Specification
| Sub-series | K series, V series, M series, P series |
| Filter cartridge Series | PowerSEP, MaxSEP, PolySEP, PesSEP, PtSEP, MeshSEP,
FiberSEP, PorSEP, V-SEP, FineSEP, MicroSEP |
| Rating(μm) | 0.05-200 |
| Cartridge size (inch) | 10, 20, 30, 40 |
| Number of cartridge | 1-200 |
| Housing Material | 304, 316L, CS |
| Applicable Viscosity (cp) | 1-500 |
| Design pressure (MPa) | 0.6, 1.0 |
Working Principle of Electrolytic Polishing Single Bag Filter Housing
- Bag filter is a kind of pressure filter device,its main structure
is divided into three parts:filter vessel,support basket with
netting on top and filter bag,the filter bag is supported by metal
net. Water flowed from the inlet, passed the filter bag and lowed
out from outlet, the contamination particle is held up in the
filter bag. It can be used continuously after changed a new filter
bag.
Application of Electrolytic Polishing Single Bag Filter Housing
- As the security department of the NF,UF,RO,EDI systerms;
- Biopharmaceutical,petrochemical,chemical industry,etc.
- Electronics, microelectronics, semiconductor industries using high
pure water filtration;
- Oil field water injection, boiler water, chemical reagent, organic
products, high purity chemicals, thick liquid medicine filter;
- Drinking water,mineral water,fruit juice,tea beverages,health
drinks filtration
- Liquor, wine, beer, yellow wine and other wine filtration, pure
draft beer aseptic filtration (replacement pasteurization);
- As the security filter in the water pre-treatment systerm,to
process the production/living sewage
- Others such as biological engineering, oil refining, printing and
dyeing, textile industry's water supply and wastewater treatment,
scientific research experiments filtering, etc.
