large flow precision filters, single and multi-bag filters,
professional filters
Principle of Pressure Filtration
Purpose: Solid-liquid separation
Style
Performance: Precision filtration, high efficiency filtration
Applicable object
Applicable object properties: corrosive, low temperature material,
weak corrosive.
Other filter media types: non-woven fabrics
Filter Type Bag Type
Main Material Stainless Steel
Scope of application: metallurgy, textiles, pharmaceuticals,
automobiles, chemical industry, electroplating, water treatment,
petroleum, dyes
Effective filtration area 2 (m2)
Shape size non-standard (mm)
Equipment weight 350 (Kg)
Specification 4 bags
Is it a cross-border source of goods?
Bag filter is a multi-purpose filter equipment with novel
structure, small volume, simple and flexible operation, energy
saving, high efficiency, closed operation and strong applicability.
Bag filter is a new type of filtration system. The inner of the bag
filter is supported by a metal mesh basket, and the liquid flows in
from the inlet, then flows out from the outlet after the filter bag
is filtered. The impurities are intercepted in the filter bag, and
the filter bag can be replaced for further use.
Main advantages
The side leakage rate of the filter bag is small, which effectively
guarantees the quality of the filter.
Bag filter can bear greater working pressure, less pressure loss,
low operating cost and obvious energy saving effect.
The filtering accuracy of the filter bag has been improved
continuously, reaching 0.5 um.
Bag filter has large capacity, small volume and large contamination
capacity.
It is convenient and fast to replace the filter bag, and the filter
is free of cleaning, saving labor and time.
The filter bag can be used repeatedly after cleaning, thus saving
cost.
Bag filter has a wide range of applications, flexible use and
various installation methods.

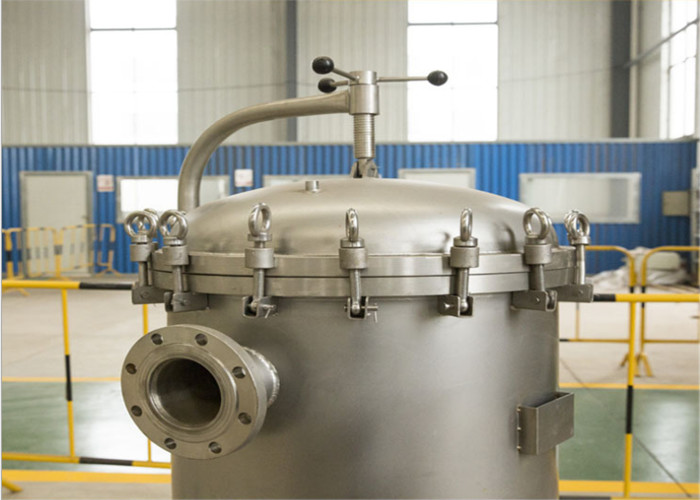

Bag filters are divided into single bag filters, multi-bag filters
and sandwich filters.
Multi-bag filter, suitable for large flow filtration. From 1 to 24
bags, the specifications are complete.
The diameter of import and export flange is DN50-450MM, and the
maximum flow rate of single machine is 30-720m3/h. Quick opening
design can be provided, and the replacement of filter bags is very
convenient.
